DELTA®-MS High-Density Dimpled Membrane Protection Board
  • DELTA®-MS High-Density Dimpled Membrane Protection Board
DELTA®-MS High-Density Dimpled Membrane Protection Board
$220.00 $650.00 $220.00/40m²
Note: In-Store & Online - Fast Delivery (click for details)
Generally stocked in store, Eligible for Super-Fast delivery and available for pick up

Protect your primary waterproofing investment with DELTA®-MS, the ultimate high-density polyethylene (HDPE) protection layer. Designed as a rugged mechanical barrier, it shields delicate waterproofing membranes from puncture and damage during backfilling. With its unique dimpled air-gap design, it not only provides a heavy-duty physical shield but also serves as a secondary drainage plane to keep hydrostatic pressure away from your structure.

Note: Used as a standalone membrane in USA, we do not supply accessories and mainly used as below grade membrane protection with better drainage and anti-condensation.

Available Size: 2M X 20M = 40M²

✓ In stock • Ready to ship

Key Features

  • Impact-resistant HDPE shield
  • Protects primary membranes
  • High compressive strength
  • Dimpled air-gap drainage
  • Bridges foundation cracks
  • Chemical resistant barrier
  • 50-year service life

Typical Uses

  • Waterproofing membrane protection
  • Backfill damage prevention
  • Foundation armor layer
  • Hydrostatic pressure relief
  • Vertical wall shielding
  • Commercial foundation guard
  • Secondary drainage plane
  • Below-grade mechanical protection

Suitable Surfaces

  • Liquid waterproofing membranes
  • Rigid foam insulation
  • Concrete block walls
  • Hebel walls & structures
  • Poured concrete structures
  • Insulated concrete forms
  • Residential foundation walls
  • Basements
  • Retaining Walls

Other Related Products

Product Details

The Professional Guard for Your Waterproofing System

In the construction industry, the most common cause of basement leaks is damage to the waterproofing membrane during backfill. DELTA®-MS eliminates this risk. It acts as a permanent, high-impact "protection board" that ensures your primary waterproofing stays intact and functional for the life of the building.

Engineered for Mechanical Defense:
Unlike thin protection fabrics, DELTA®-MS is made from tough HDPE that resists rocks, construction debris, and heavy soil loads. Its dimpled structure creates a 5/16" (8mm) air-gap, which relieves hydrostatic pressure by allowing water to flow freely to the footer drain rather than pressing against your wall.

Key Advantages for Protection:

  • Backfill Protection: Absorbs the impact of sharp rocks and soil during the backfilling process.
  • Secondary Defense: While its primary role is protection, the impermeable HDPE material provides a powerful secondary waterproofing layer.
  • Stress Relief: The dimpled design bridges cracks and allows the foundation to shift or settle without tearing the protection layer.
  • Lifetime Durability: Resistant to soil acids, alkaline, and root penetration, ensuring your primary membrane is guarded for 50+ years.

Product Limitations

  • Designed as a protection/drainage layer; check local codes if using as a standalone barrier.
  • Must be installed with dimples facing the wall/membrane for optimal drainage.
  • Not intended for permanent exposure to direct sunlight (UV).
  • Avoid using sharp-edged tools during installation that could puncture the HDPE.

Related Product Images

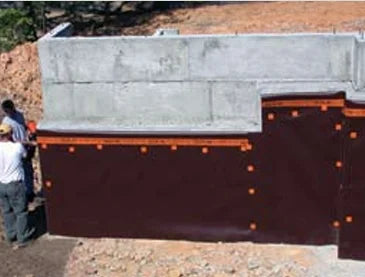

Product image 1 for DELTA®-MS High-Density Dimpled Membrane Protection Board

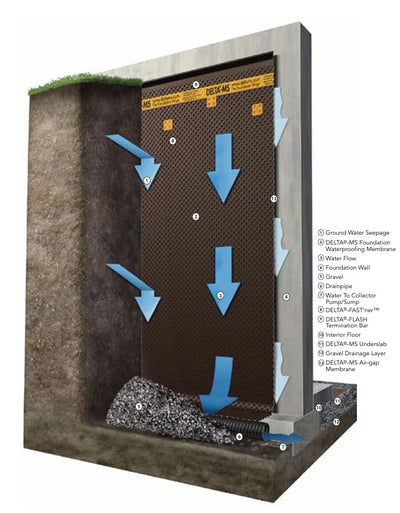

Product image 2 for DELTA®-MS High-Density Dimpled Membrane Protection Board

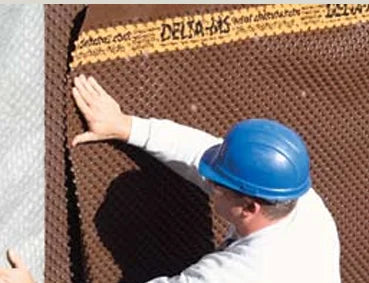

Product image 3 for DELTA®-MS High-Density Dimpled Membrane Protection Board
